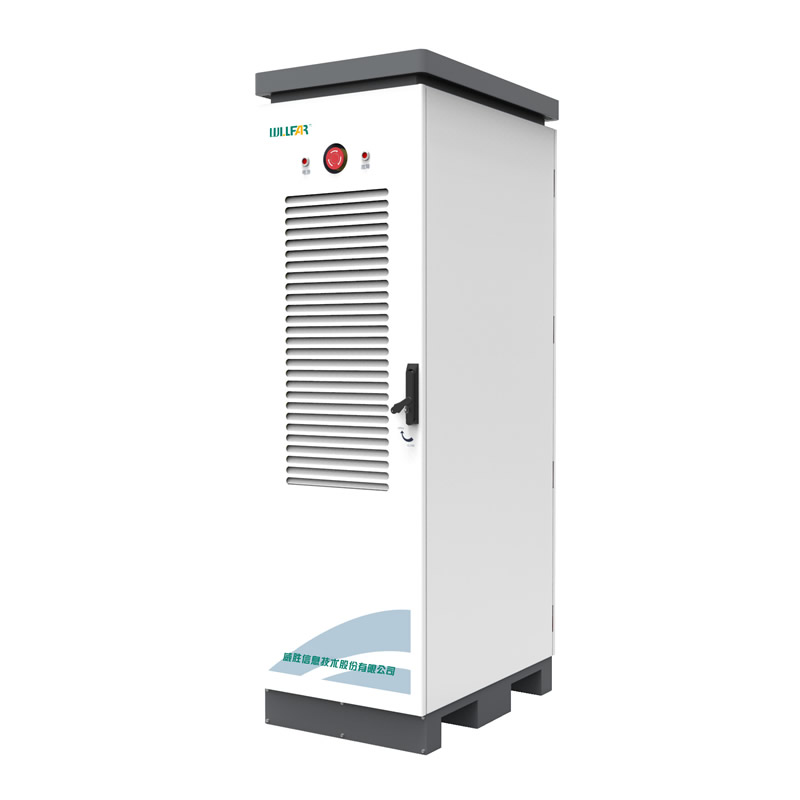

30kW DC Intelligent Charging Pile Split Type For Electric Vehicle
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Carton Packaging |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 2000 per day (based on the number of the order) |
| Place of Origin: | Changsha, Hunan |
| Brand Name: | Willfar Information Techonology Co., Ltd. |
| Certification: | DIN 70121, EN 61851-23 2014, EN 61851-1: 2010 |
| Model Number: | 30kW DC Charging Pile (Split Type) |
Detail Information
| Color: | White/Black | Material: | PVC, Steel |
|---|---|---|---|
| Brand: | Willfar Information | Place Of Origin: | Changsha Hunan |
| No. Of Charging Gun: | 5 Max. | Installation Method: | Stand Column |
| Lenth Of Customizednth Of Charging Wire: | 5 Meters (customized) | Level Of Protection: | IP54 |
| Output Power: | 30kW | ||
| High Light: | electric vehicle charging stations | ||
Product Description
1. The 30 kW Split Type DC Intelligent Charging Pile of Willfar Information Technology Company Ltd.. is developed to meet the requirements of DIN 70121.
2. It is the isolation type DC charging pile with EU TUV Certification, which is mainly used for pure electric vehicle for quick charge.
3. The Charging Pile adopts split type, waterproof, dustproof, anti-corrosion and environmental protection design, its protection level is IP54.
4. The 30 kW Split Type DC Intelligent Charging Pile is designed and developed in accordance with EU standards, in full compliance with EN 61851-23 2014, EN 61851-1: 2010 Standards, which provides efficient, stable and convenient intelligent chargings service for electric vehicles.
Technical Parameters
| Item | Parameter |
|---|---|
| Output Power | 30/45/60/75/90/120/150kW |
| Output Voltage | 200~750VDC |
| Overall Efficiency | ≧95% |
| Output Current | 20~250A DC |
| Input Voltage | 380V±15% |
| Lenth of Charging Wire | 5 meters (customized) |
Features
- 1. Highly modularized design, easy to install and matain.
- 2. Rich interface, compatible with various types of vehicles.
- 3. 7 Inches touch LCD screen Real-time collecting and displaying the charging status and the car battery information.
- 4. Input/output multiple protection, safe charging.
- 5. Multiple payment methods of credit card and APP.

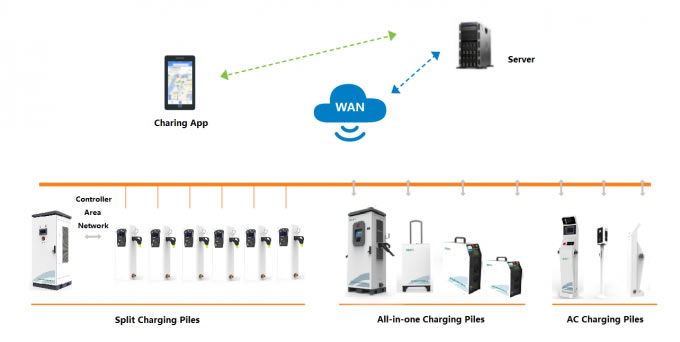

- 6. Overall EV Charging System Solution provided , including Power Distribution System, Operation Management System and EV Charging Piles installation.
