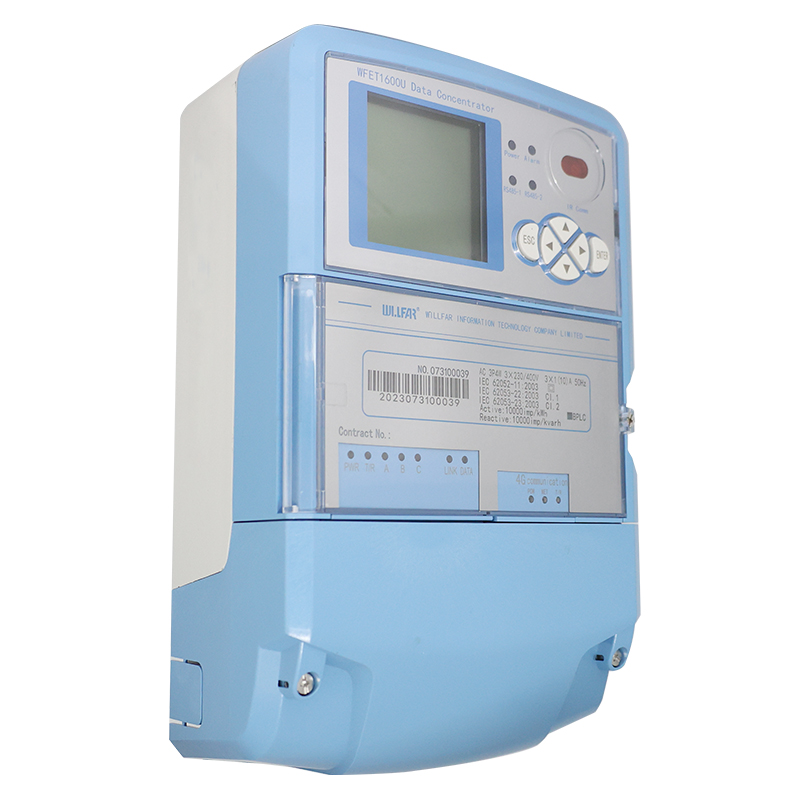

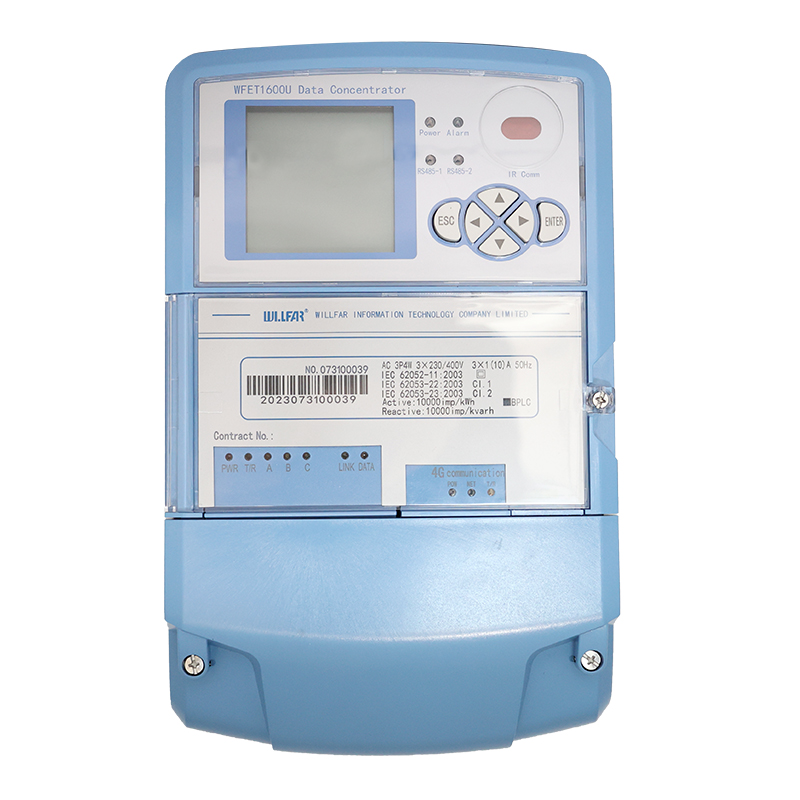

Data Concentrator Unit WFET1600U
| Place of Origin: | Changsha, Hunan |
|---|---|
| Brand Name: | Willfar Information Techonology Co., Ltd. |
| Certification: | G3-PLC, RF |
| Model Number: | WFET1600U |
| Minimum Order Quantity : | 100 |
| Packaging Details : | Carton Packaging |
| Delivery Time : | 30 days |
| Payment Terms : | T/T |
| Supply Ability : | 2000 per day (based on the number of the order) |
Detail Information
| Color: | White | Material: | PVC |
|---|---|---|---|
| Output Voltage: | 12V DC | Brand: | Willfar Information |
| Level Of Protection: | IP54 | Operating Voltage Range: | 70%~130%Un |
| Output Power: | 12W | Relative Humidity: | Up To 95% Non-condensing |
| Dimension: | 290 Mm ×180 Mm ×95mm | ||
| High Light: | remote data concentrator , rf gateway | ||
Product Description
1.1 Product Description
Place of Origin: | Changsha, Hunan |
Company Name | Willfar Information Technology Co., Ltd. |
Certification: | SGS |
Model Number: | WFET1600U |
Minimum Order Quantity : | 100 |
Packaging Details : | Carton Packaging |
Delivery Time : | 30 days |
Payment Terms : | T/T |
Supply Ability : | 2000 per day (based on the number of the order) |
1.2 Detail Information
Color: | Blue | Material: | PC+GF |
Output Voltage: | 12V DC | Brand: | Willfar Information |
Level Of Protection: | IP51, IP54 with box | Relative Humidity | Up to 95% non-condensing |
Normal Operating Temp. Range | -25℃ ~ +55℃ | Limit Operating Range | -40℃ ~ +70℃ |
Weight | 2kg | Dimension: | 180 mm ×290 mm ×95mm (W×H×D) |
Highlight: | Remote data concentrator | ||
1.3 Overview
- WFET1600U is a smart data concentrator for the high demands of global AMI markets.
- Hardware and firmware of WFET1600U follows the modular design concept. It can work together with Meters and HES from different manufacturers’ base on various communication module and standard protocol.
- WFET1600U provides increased cost effective for you with its strong specifications and functionalists.
1.4 Key Parameters
NO. | Item | Technical Parameter |
1 | Rated Operating Voltage | 3-Phase 3x220V/380V AC 1-Phase 230V AC |
2 | Operating Voltage Range | 70%~130%Un |
3 | Rated Frequency | 50Hz |
4 | Frequency Range | 47.5Hz~52.5Hz |
5 | Max. Power Consumption in Standby Mode | ≤5W/10kV |
6 | Max. Power Consumption in Communication Mode | ≤12W |
7 | Fast Instantaneous Pulse Group | 4kV |
8 | AC Voltage | 4kV |
9 | Immunity to Impulse Voltage IEC62052-11 | 6kV |
10 | Surge Immunity IEC61000-4-5 | 4kV |
11 | Fast transient Burst Main Circuits | 4kV |
12 | Electrostatic Discharge IEC61000-4-2 | Contact discharge, 8kV, 10 cycles Air discharge, 15kV, 10 cycles |
13 | Output Voltage | 12V DC |
14 | Output Power | 12W |
15 | Active Energy Accuracy Class | 0.5s |
16 | Reactive Energy Accuracy Class | 2 |
17 | Insulation Protection | Class II |
18 | Clock Accuracy | ≤0.5 sec/day |
19 | MTBF | ≥50,000 hours |
20 | Product Lifetime | ≥10 years |
21 | Battery Lifetime | 8 years |
22 | LCD Size | 160mm ×160mm, Visible angle> 120° |
23 | LCD Type | Dot matrix monochromatic LCD |
1.5 Features
1. The DCU (Data Concentration Unit) possesses the capability to autonomously identify newly installed meters within the grid and subsequently forwards this information to the Head-End System (HES). Moreover, the DCU can assess the operational status of meters, determining whether they are online, and dynamically generate the topology map.
2. WFET1600U can manage meter as set information as well as meter reading data. It can be support max 1024 meter data storage, including meter serial number, scheduled reading data, meter data collecting schedule and so on.
3. The concentrator will periodically read the meter data according to the pre-set reading interval, which supports 15min, 30min, 1h, 24h etc. in an interval manner with maximum capacity 1,024 meters. There are 512M bytes used to store meter data, according to typical application, the data of 1000 meters with 1h interval can be stored for 6 months.
4. Initially, the concentrator will attempt to read the meter's frozen data. Should the meter lack support for storing frozen data, the concentrator will then treat the current reading as the frozen value and use the present time as the timestamp for this data. Within a predefined timeframe, the concentrator is designed to autonomously compensate for any data retrieval failures. In cases where this compensation attempt is unsuccessful, it will log the incident and notify Head-End System.
Technical Parameters
| Item | Parameter |
| Reference Voltage | 3-Phase 3x220V/380V AC 1-Phase 230V AC |
| Operating Voltage Range | 70%~130%Un |
| Frequency | 47.5Hz~52.5Hz |
| Rated Frequency | 50Hz |
| Frequency Range | 47.5Hz~52.5Hz |
| Power Consumption | |
| Max. Power Consumption in Standby Mode | ≤5W/10kV |
| Max. Power Consumption in Communication Mode | ≤12W |
| Fast Instantaneous Pulse Group | 4kV |
| AC Voltage | 4kV |
| Immunity to Impulse Voltage IEC62052-11 | 6kV |
| Surge Immunity IEC61000-4-5 | 4kV |
| Fast transient Burst Main Circuits | 4kV |
| Electrostatic Discharge IEC61000-4-2 | Contact discharge, 8kV, 10 cycles Air discharge, 15kV, 10 cycles |
| Output Voltage | 12V DC |
| Output Power | 12W |
| Physical Characteristic | |
| Normal Operating Temp. Range | -25℃ ~ +55℃ |
| Limit Operating Range | -40℃ ~ +70℃ |
| Limit Temp. Range for Storage & transport | -45℃ ~ +85℃ |
| Relative Humidity | Up to 95% non-condensing |
| Level of Protection | IP54 |
| Insulation Protection | Class II |
| Clock Accuracy | ≤0.5 sec/day |
| MTBF | ≥50,000 hours |
| Product Lifetime | ≥15 years |
| Battery Lifetime | 10 years |
| LCD Size | 160mm ×160mm, Visible angle> 120° |
| LCD Type | Dot matrix monochromatic LCD |
| Dimension | 290 mm ×180 mm ×95mm |
| Weight | 2kg |
| Accuracy Class（optional） | |
| Active energy | 0.5s |
| Reactive energy | 2 |
WFET1600U Technical Characteristic
| Technical Item | Parameters |
| CPU Processor | Atmel ARM9 |
| SDRAM | 128M |
| Flash | 1GB |
| Operating System | Linux |
| Internet Protocol | IPV4, IPV6 |
Features
WFET1600U concentrator is composed of several elements, including:
- 32bits ARM processor
- 32/64M SDRAM
- 128MB Flash
- Plug and play communication modules
- High accuracy temperature compensated RTC chip
- Large capacity NVM
- LCD display with driving chip

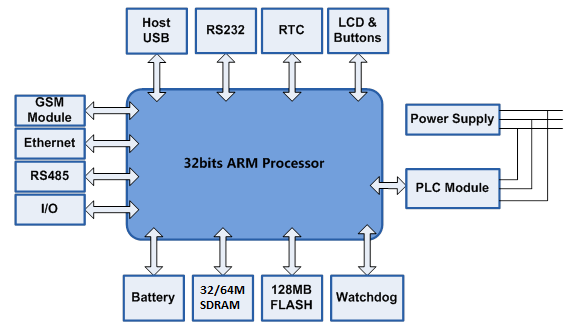

The block diagram below shows the main functional elements of the concentrator:
Meter data management
The DCU can automatically detect the new meters installed in the grid, then push the new meters information to the HES. In addition, DCU can detect the meters status whether online or not, and get the topology map dynamically.
WFET1600U can manage meter as set information as well as meter reading data. It can be support max 1024 meter data storage, including meter serial number, scheduled reading data, meter data collecting schedule and so on.
The concentrator will periodically read the meter data according to the pre-set reading interval, which supports 15min, 30min, 1h, 24h etc. in an interval manner with maximum capacity 1,024 meters. There are 512M bytes used to store meter data, according to typical application, the data of 1000 meters with 1h interval can be stored for 6 months.
The concentrator will read the frozen data of meter first. If the meter does not support frozen data of meter, then the concentrator will read the current value as the frozen value, and current time as frozen time. Within the required time, the concentrator can automatically make up for the data failing to be read. When the makeup fails, it will record the event log and report it to the master station.
