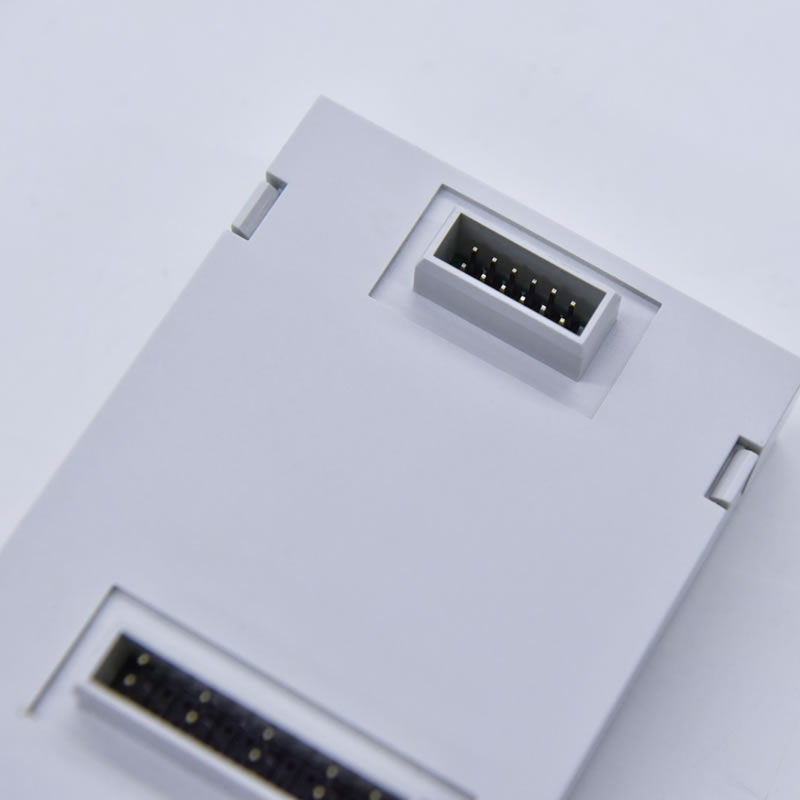

G3-PLC Wireless Communication Module Grey IPv6 AMI Module DC2-PTR4
| Place of Origin: | Changsha, Hunan |
|---|---|
| Brand Name: | Willfar Information Techonology Co., Ltd. |
| Certification: | G3-PLC |
| Model Number: | DC2-Ptr4 |
| Minimum Order Quantity : | 100 |
| Packaging Details : | Carton Packaging |
| Delivery Time : | 30 days |
| Payment Terms : | T/T |
| Supply Ability : | 2000 per day (based on the number of the order) |
Detail Information
| Color: | Grey | Brand: | Willfar Information |
|---|---|---|---|
| Place Of Origin: | Changsha Hunan | Communication Mode: | G3-PLC |
| Application: | Three Phase Meter | Reference Voltage: | 110 ~ 240V |
| Relative Humidity: | Up To 95% Non-condensing | Level Of Protection: | IPv6 |
| High Light: | 4g module , gprs module | ||
Product Description
- G3-PLC is an open power line communication module designed for smart grid communication. Its physical layer is based on OFDM modulation and complies with G3 standards.
- G3-PLC have high-speed communication, strong anti-interference ability, the communication speed is much faster than traditional PLC.
- The module has very low maintenance cost. Metering reading network operating with G3-PLC is automatically constructing, automatically addressing and route maintenance.
- It can be easily integrated in smart electric meter to provide the AMI function.
- DC2-PTR4 could be adopted to Three Phase Electric Meter.
Technical Parameters
| Item | Parameter |
| Reference Voltage | 110 ~ 240V |
| Operating Voltage Range | 70%-120%Un |
| Rated Frequency (fn) | 50Hz and 60Hz |
| Frequency Range | 47.5Hz to 63Hz |
| Modulation Mode | OFDM (ROBO, DBPSK, DQPSK, D8PSK) |
| Work Frequency | CENELEC A (32kHz to 95kHz);
FCC (154kHz to 487kHz) |
| Anti-attenuation Capability | >78DB (related to the operating frequency band, the impedance of the test environment and the phenotype) |
| Data Speed | Maximum 142Kbps |
| Power Consumption | 0.6W (static),
2.7W (Maximum working consumption) |
| Security | 128 bit AES & AES‐CCM |
| Standard Support | IEEE1901.2;
IEEE802.15.4-2006;
6LoWPAN |
| Mechanical Dimension | 87mm×58mm×27mm |
| Relative Humidity | Up to 95% non-condensing |
| Level of Protection | IPV6 |
Features
1. High Efficient
OFDM-based PHY (BPSK, QPSK, 8PSK) makes efficient use of the spectrum. The "robust" mode of module improves communication under noisy channel conditions, operates at -15 dB SNR.
2. World Standard
Compliant with world regulatory bodies such as CENELEC, ARIB, and FCC (10 kHz - 490 kHz). Auto switch between CENELEC-A and FCC to adapt different scenario according to the DCU.
3. Certificate based
- Two layers of forward error correction (FEC) for robust data communication in harsh channels.
- Adaptive tone mapping for optimal bandwidth utilization.
- Channel estimation to select the optimal modulation scheme between neighboring nodes.
- IEEE 802.15.4-based MAC layer well suited to low data rates.
- 6LoWPAN adaptation layer to transmit IPv6 packets over powerline channels.
- Coexistence with older S-FSK (IEC 61334), and broadband IEEE P1901 and ITU G.hn standards.
- Supports IPv6 to allow Internet-based energy management systems and applications.
4. Security
AES-128 cryptographic engine for optimum data security.
5. Mesh routing protocol to determine the best path between remote network nodes
- The maximum nodes 1024
- The maximum hops 14
