External GPRS Module For Smart Meter GPRS Data Collection System
| Place of Origin: | Changsha, Hunan |
|---|---|
| Brand Name: | Willfar Information Techonology Co., Ltd. |
| Certification: | CE |
| Model Number: | WS-18e |
| Minimum Order Quantity : | 100 |
| Packaging Details : | Carton Packaging |
| Delivery Time : | 30 days |
| Payment Terms : | T/T |
| Supply Ability : | 2000 per day (based on the number of the order) |
Detail Information
| Color: | Grey | Material: | PVC |
|---|---|---|---|
| Nominal Voltage: | 12V DC | Brand: | Willfar Information |
| Maximum Current: | 800mA | Voltage Range: | 5V DC~32V DC |
| Operating Temperature: | -25 °C ~ + 75 °C | Relative Humidity: | ≤95%, Non-condensing |

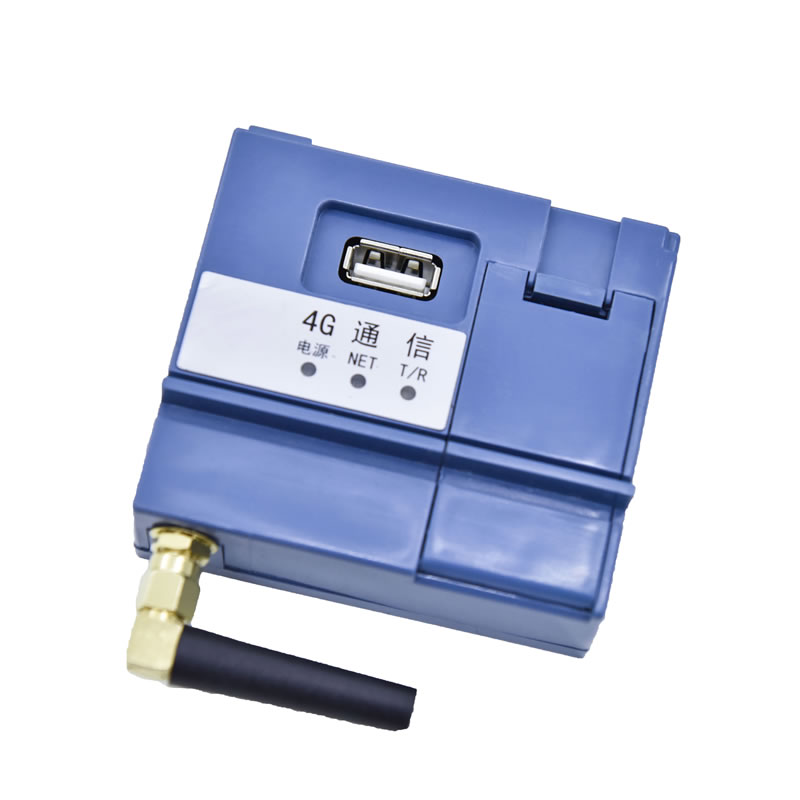

| High Light: | 4g module , wireless networking module | ||
Product Description

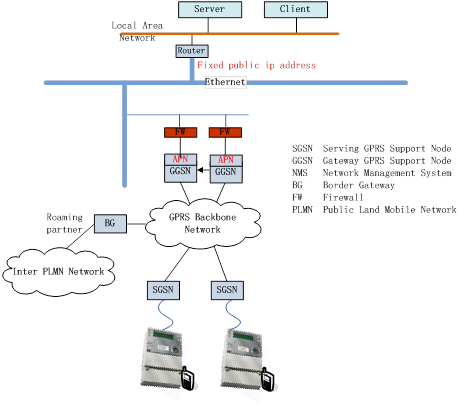

- The General Packet Radio Service (GPRS) is a GSMbased wireless packet switched technology used to provide endtoend wide area wireless IP connections.
- GPRS communication module is a highspeed data processing technology which transfers data to users in “Packet” mode. Although the GPRS is a transitional solution from the GSM network to 3G, yet it has prominent advantages in many aspects such as the transfer rate, wireless resource management and billing.
- Users will have a statically or dynamically allocated IP address in addition to a phone number.
- This feature is ideal for a majority of mobile applications.
Technical Parameters
| Item | Parameter |
| Nominal Voltage | 12V DC |
| Voltage Range | 5V DC~32V DC |
| Idle Current | 13mA@5V |
| Communication Current | 210mA@5V |
| Maximum Current | 800mA |
| Sensitivity | <-108.5dBm |
| SIM Interface | 1.8V/3V |
| Electrostatic Discharge IEC61000-4-2 | Air discharge, 15kV, 10 cycles |
| Operating Temperature | -25 °C ~ + 75 °C |
| Relative Humidity | ≤95%, non-condensing |
Features
1. GSM/GPRS (850/900/1800/1900 MHz)
2. Over the Air Update
3. Supports TCP/UDP/FTP/DNS protocol
4. Remote SMS configuration
5. Control via AT Commands
6. Supports USB2.0 slave mode
7. Update via USB Port
8. Data transfer
• GPRS
- Max. 85.6Kbps (DL), Max. 85.6Kbps (UL)
Reading Instruction
1. During the data transmission, RXD and TXD LED light blink.

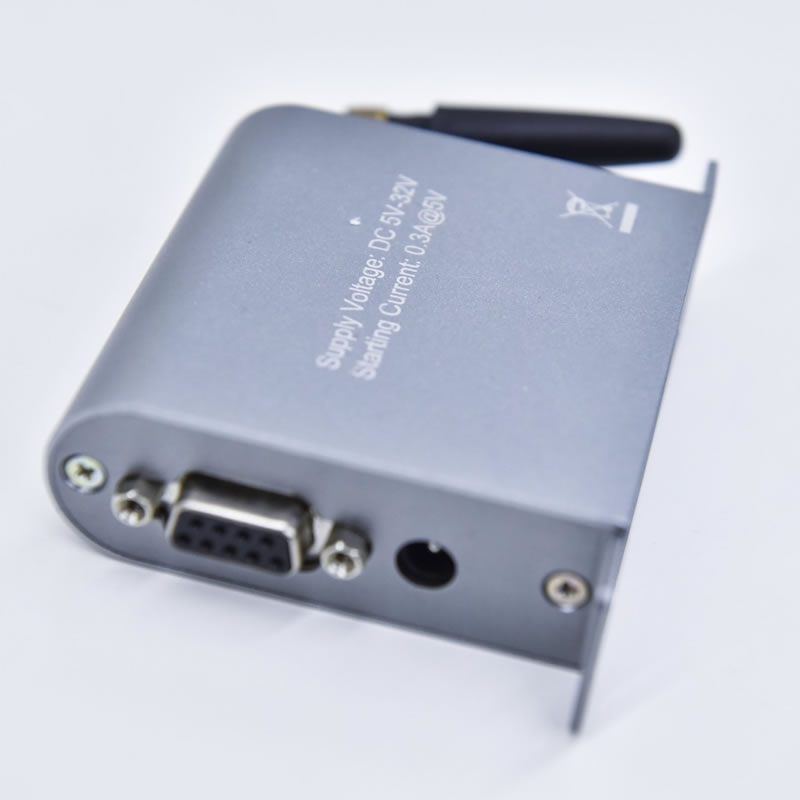

2. Date cable socket to connect meter
3. Power supply socket

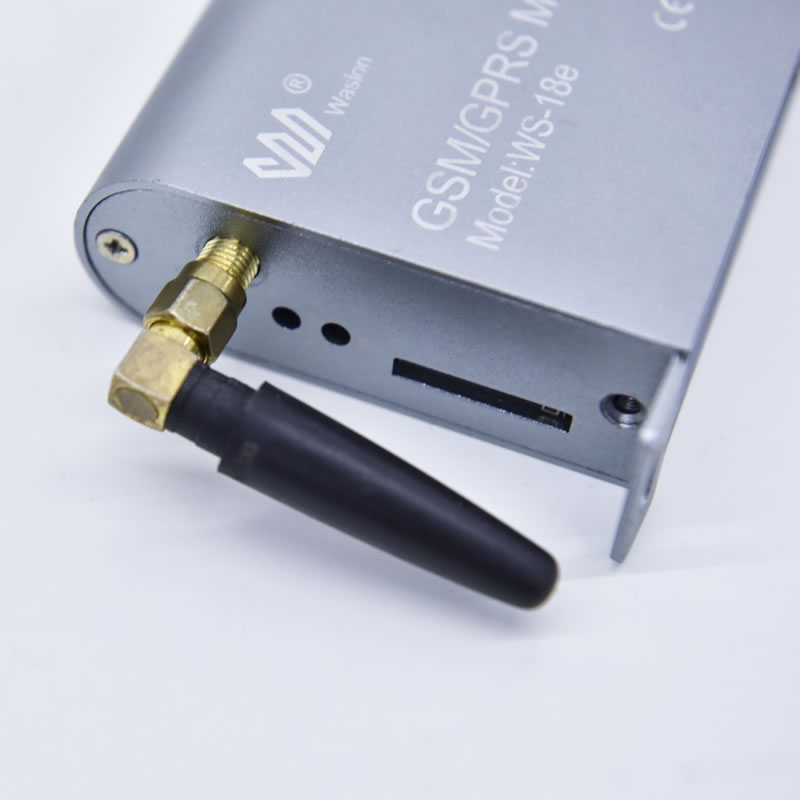

4. Antenna pedestal with SMA type
5. Network LED with red always blink
6. SIM card pedestal for installing SIM card
