1.3 Overview

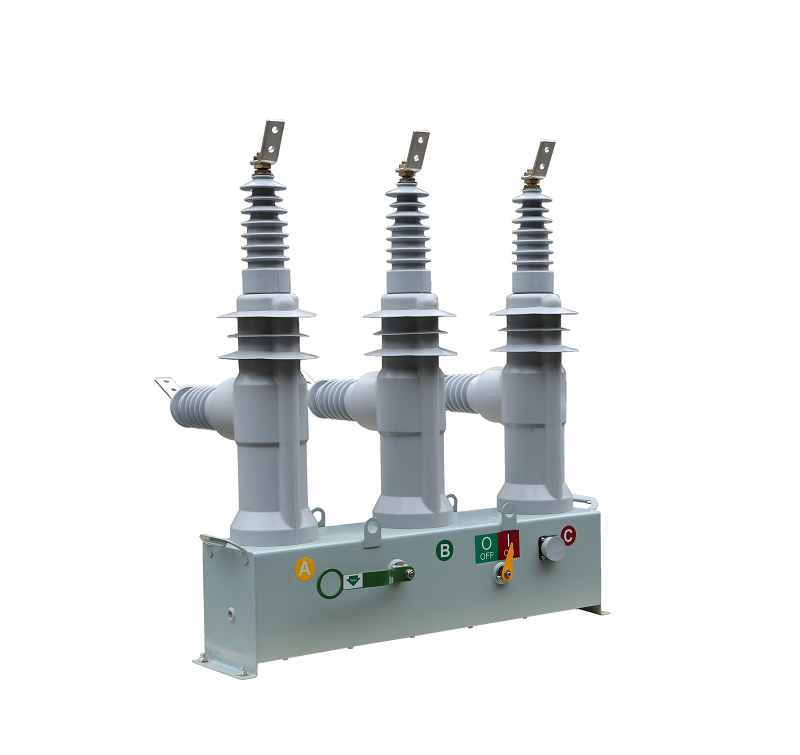

The WFDT-7200 outdoor high-voltage AC automatic recloser (hereinafter referred to as recloser）is suitable for AC 50/60Hz，13.8kV or 27kV three-phase AC overhead power distribution network. The recloser can automatically perform breaking and reclosing operations in distribution network according to the predetermined breaking and reclosing sequence, which can quickly segment and isolate distribution line faults and improve the reliability of power supply.
1.4 Key Parameters
NO | Parameter name | Technical Parameters |
1 | Rated voltage | 12kV |
2 | Rated frequency | 50Hz |
3 | Rated current | 630A |
4 | Rated short-circuit opening current | 20kA |
5 | Rated peak withstand current (peak) | 50kA |
6 | Rated short-time withstand current (4S) | 20kA |
7 | Rated short-circuit closing current (peak) | 50kA |
8 | Mechanical life | 10000time |
9 | Rated number of short circuit open current open | 30time |
10 | Rated rower frequency withstand pressure (1min) : (wet) (dry) alternate, ground/fracture | 42/48kV |
11 | Rated lightning impact withstand voltage (peak) between phases and to ground/fracture | 75/85kV |
12 | Secondary loop 1min power frequency withstand voltage | 2kV |
13 | Rated short circuit duration | 3Sec |
14 | Fault isolation time | ≤150ms |
15 | Fault isolation time | ≤300ms |
16 | Nominal operating sequence | O-0.3s-CO-2s-CO-5s-CO-Latch |
17 | Degree of protection | IP65 |
1.5 Features

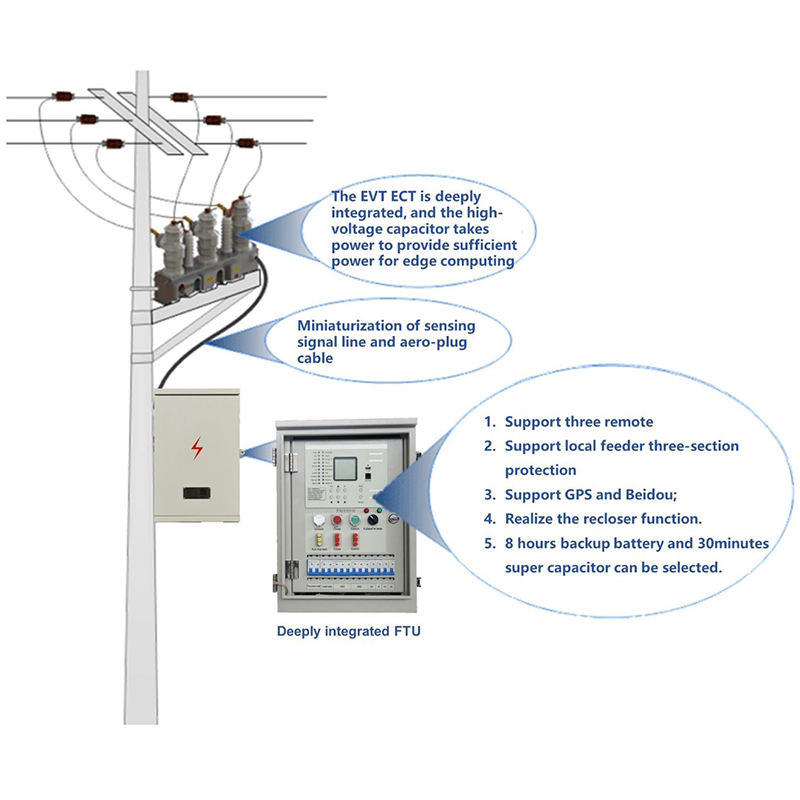

1. Support three remote: remote real-time transmission, can set telemetry can set the threshold and remote control output;
2. Support three-section protection of local feeder, and record fault information;
3. 8 hours backup battery and 30 minutes super capacitor can be selected. In the case of only backup power supply, it can ensure that the division-combination-division-3 operations to maintain the normal work of the distribution terminal and communication module.
4. The controller is equipped with LCD panel, which can be very convenient for maintenance;
5. Support system timing, GPS and Beidou time;
6. Recloser function: parameters such as recloser times and interval time can be set according to user needs to realize the recloser function.
